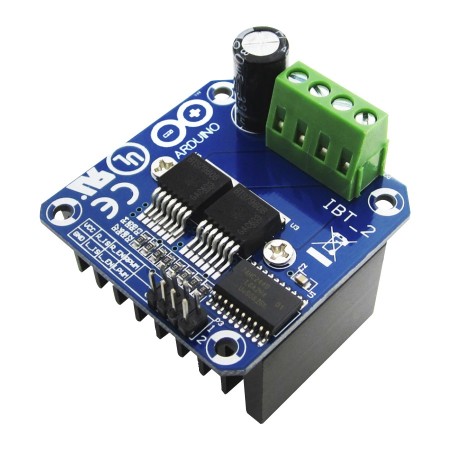

Modulo Puente H controlador de motores de alta corriente 5,5V a 27V 43A
Este controlador usa el Chip BTS7960 como puente H para permitir el control de motores, cuenta con un protector ante sobrecalentamiento y sobrecorriente. Este módulo también cuenta con un aislador que permite separar el circuito de control de la parte de potencia para mantener la integridad del dispositivo, puesto que este driver puede llegar a generar una corriente de hasta 43A.
El BTS7960 contiene dos transistores MOSFET de tipo P y N con un controlador IC en un solo paquete, lo cual permite la conexión de interfaz a un dispositivo externo de control, como lo puede ser un microcontrolador, ya que este cuenta con entrada de tipo lógico,ajuste de velocidad, generación de tiempo muerto y protección contra exceso de temperatura, sobretensión, baja tensión, sobrecorriente y corto circuito.
A veces necesitamos controlar motores DC de mucho consumo de corriente como 10A o 20A, para lo cual el driver L298N se queda pequeño para esas aplicaciones, por eso te traemos el driver puente H BTS7960 43A, que viene en practico modulo para su facilidad de conexión con PIC,Arduino o RaspBerry.
Especificaciones Tecnicas
- Chips BTS7960
- Chip Buffer Schmitt-trigger 74AHC244
- Voltaje de operación 5.5V~27V
- Corriente de operación máxima 43A
- Protección Sobrecorriente
- Baja corriente de reposo 7uA a 25°C
- Entradas lógicas Si
- Tasa de respuesta ajustable EMI
- Señal PWM Dos canales
- Frecuencia de reloj 25KHz
La compra incluye
Modulo puente H BTS7960
- Anchura
- 5cm
- Profundidad
- 5cm
- Peso
- 68g
- Voltaje de operación
- 5.5V - 27V
- Altura
- 4cm
