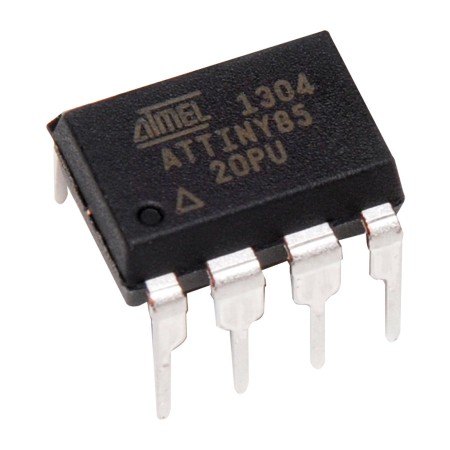

Microcontrolador ATTINY85-20PU
El Attiny85, un pequeño microcontrolador, con el que podremos realizar pequeños proyectos, en los que no necesitemos gran cantidad de memoria ni de entradas o salidas.La programación de este micro, la podremos realizar con nuestro entorno de escritorio de Arduino.
El circuito integrado ATTINY85-20PU es un microcontrolador de 8-bit con 2/4/8K Bytes En-Sistema de flash programable basado en RISC AVR Atmel de alto desempeño y bajo consumo de 8 bits que combina memoria flash ISP de 8 kB, EEPROM de 512 bytes, SRAM de 512 bytes, 6 líneas de E/S de propósito general, 32 registros de trabajo de propósito general, un temporizador/contador de 8 bits con modos de comparación, un temporizador/contador de alta velocidad de 8 bits, USI, interrupciones internas y externas, convertidor A/D de 4 canales y 10 bits, temporizador de vigilancia programable con oscilador interno, tres modos de ahorro de energía seleccionables por software y debugWIRE para depuración en chip. El dispositivo alcanza un rendimiento de 20 MIPS a 20 MHz y opera entre 2.7 a 5.5 volts.
Caracteristicas
- Microcontrolador de 8 bits AVR® de alto rendimiento y baja potencia
- Arquitectura RISC avanzada
- Memoria permanente (No-Volátil) de programas y datos
- Características periféricas
- Características especiales de microcontrolador
Especificaciones
- Velocidad de la CPU: 20 MHz
- Controller Family / Series: Tiny AVR
- Tamaño del núcleo: 8 bit
- Memoria EEPROM Tamaño: 512 Byte
- Embedded Tipo de interfaz I2C, SPI
- Número de E / S de: 6
- Temperatura de funcionamiento máxima: 85 ° C
- Temperatura de funcionamiento Min: 40 ° C
- Rango de temperatura de funcionamiento: -40 ° C a +85 ° C
- Periféricos: ADC / Comparator / PWM / Timer Sensor / Temperatura
- Memoria del programa Tamaño: 8 KB
- Memoria RAM: 500 Byte
- SVHC: No SVHC (20-Jun-2013)
- Voltaje de fuente máximo: 5.5 V
- Supply Voltage Min: 2.7 V
- Encapsulado: DIP
- 8 Pines
- Modelo: 68T3808
La compra incluye
-
Microcontrolador ATTINY85-20PU
