led 5mm dual rojo y verde catodo comun x100 unidades

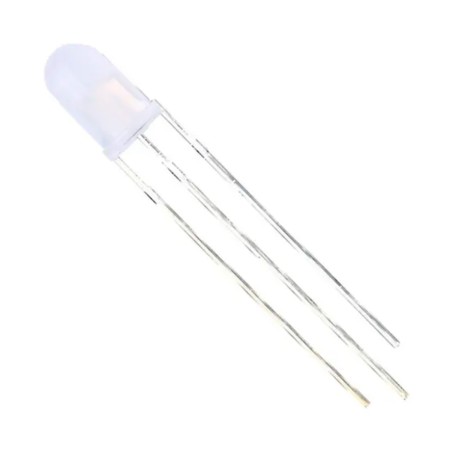

Diodo LED 5mm Bicolor Rojo-Verde, 40mA (20mA por cada color), de 3 pines con cátodo común y un ángulo de visión máximo de 30º.

100 unidades

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	8%	$ 29.556,56
30	10%	$ 110.837,10
50	12%	$ 221.674,20
100	14%	$ 517.239,80

$ 34.728,96 Impuestos no incluidos

34728.96 Impuestos no incluidos

$ 36.945,70 -6%

En stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

Es uno de los componentes básicos en la elaboración de tus proyectos, ya sea utilizándolo como indicador de estado de algún pin o en la elaboración de un letrero electrónico.

Cuántas veces te has topado con la necesidad de colocar una luz indicadora Led en alguno de tus proyectos pero te ves obligado a 2 leds, lo cual no es lo mas conveniente para mostrar encendido y apagado, el led bicolor tiene la solución ya que cuenta con un Led de 2 colores, por lo tanto ya no deberás preocuparte por hacer 2 agujeros a una carcasa o por colocar otra pista en tu tabla PCB.

características:

Tamaño: 5 mm.
Voltaje máximo: 1,8-2v (Rojo) y 3-3,4v (Verde).
Tipo de conexión: Cátodo común.
Ángulo de visión: 30º
Corriente de funcionamiento: 40mA (20mA por color).
Número de pines: 3 pines.
Vida del diodo: 20.000 horas.
Temperatura de funcionamiento: -25ºC / 80ºC.
Temperatura de soldadura: + 260ºC (<5 seg.).

La compra incluye:

100 led 5mm color dual rojo y verde
