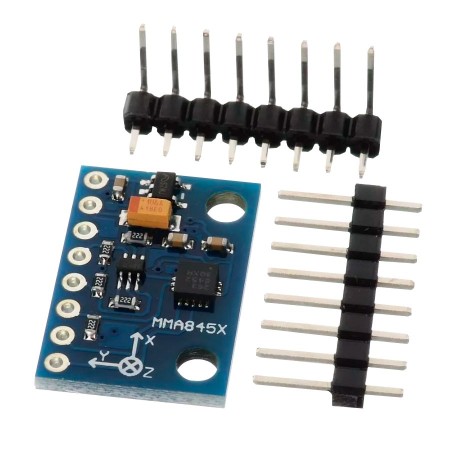

Modulo acelerometro MMA8452
El MMA8452Q ofrece una solución efectiva para prototipos de evaluación del dispositivo y en aplicaciones finales.
Es ideal para proyectos en robótica o sistemas de medición inercial.
El MMA8452Q es un acelerómetro de bajo consumo inteligente, de tres ejes capacitivos con 12 bits de resolución. Este acelerómetro está repleto de funciones integradas con opciones programables flexibles para el usuario.
Dos pines de interrupción configurables, con funciones embebidas que permiten el ahorro de energía en general para evitar que el procesador haga Polling continuamente
Características
- El MMA8452Q tiene escalas completas de ± 2g / ± 4g / ± 8g con datos filtrados de paso alto así como los datos disponibles no filtrados de en tiempo real, seleccionables por el usuario
- Salida serie por bus I2C.
Especificaciones
- Tensión de alimentación: 1,95 V a 3,6 V
- Tensión de interfaz: 1,6 V a 3,6 V
- Consumo de corriente: 6 uA - 165 uA
- Protocolo: I2C (opera a 2,25 MHz con 4,7 kΩ pullup)
- Resolución: 8 y 12 bits
- Frecuencia de datos de salida (ODR): 1.56 – 800Hz
- ± 2g / ± 4g / ± 8g seleccionable dinámicamente a escala completa
-
Dos pines programables de interrupción para seis fuentes de interrupción
- Tres canales integrados de detección de movimiento
- Orientación (Vertical / Horizontal) Detección con histéresis
- Filtro de paso alto Datos disponibles en tiempo real
La compra incluye
- Modulo acelerometro MMA8452
- 2 tiras de pines
