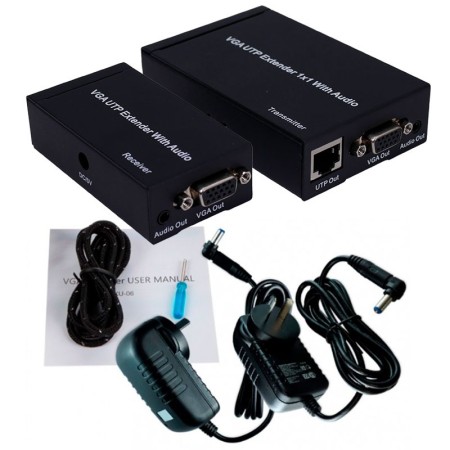

Extensor VGA por UTP activo hasta 300m
Permite extender una conexión VGA a VGA por cable UTP hasta 300 metros
Este tipo de extensor VGA por UTP CAT6/CAT5 utiliza tramos de cable utp para permitir extender la señal VGA hasta 305m.
No solo rompe con las limitaciones de distancia del VGA si no que ademas es mucho mas flexible y permite pasar cable con mucha mas facilidad por cañerías o a través de paredes, gracias a la versatilidad del cable UTP. La instalación es muy sencilla, cuenta con un emisor y un receptor que solo necesitan conectarse para el funcionamiento. No requiere mayores configuraciones.
El extensor VGA UTP de hasta 300 metros cuenta con potenciómetros GAIN y PEAK que permiten ajustar con precisión la calidad de la señal transmitida. El control GAIN compensa la pérdida de intensidad en cables largos, mientras que PEAK refuerza las frecuencias altas para mantener la nitidez y definición de imagen. Estos ajustes aseguran una transmisión estable y clara incluso en instalaciones de gran distancia.
Características
- Ancho de banda máximo: 600MHZ@3dB
- Resoluciones soportadas: VGA, SVGA, XGA, SXGA, WXGA, UXGA
- Salida VGA 0-0 TVp-p(75 Ohm)
- Entrada VGA 0-0 7Vp-p (75 Phm)
- Interfaz de audio miniplug 3.5mm Jack
- Conexión Rj45 Cat5/Cat6
- Alimentación 5v DC 600mA
- Resolución 1024 * 768@60Hz = 10-305m
- Temperatura de operacion 00-40°C
- Peso 720g
- Tamaño receptor: 8,5cm x 4,5cm x 2,2cm
- Tamaño transmisor 10,5cm x 6.5cm x 2,5cm
- Tamaño Caja 23,5cm x 17,5cm x 5.5cm
- Diseño de hardware fuerte y resistente
la compra incluye
- Transmisor
- Receptor
- Destornillador
- 2 fuente 5v para transmisor y receptor
- Anchura
- 7.5cm
- Profundidad
- 10.5cm
- Peso
- 215g
- Protocolos Soportados
- VGA, SVGA, XGA, SXGA, WXGA, UXGA
- Altura
- 3cm
