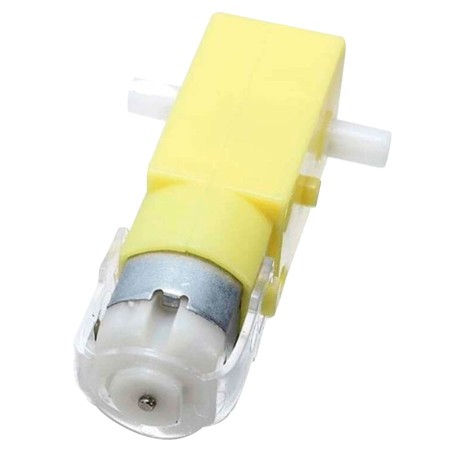

Motor 3 a 6V con caja reductora

Motor Para Auto inteligente controlado por Arduino 3V-6V Dual Axis Gear Reducer Motor.

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	23%	$ 8.115,57
30	25%	$ 26.463,83
50	27%	$ 47.634,89
100	29%	$ 102.326,79

$ 2.787,52 Impuestos no incluidos

2787.52 Impuestos no incluidos

$ 3.528,51 -21%

En stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

El motor mas utilizado para robots con ruedas en Arduino. viene unido a una caja que posee varios engranajes en su interior que posibilita la reducción y estabilidad de la velocidad.

La ventaja que sea doble eje, es que podrás acoplar un ENCODER, para poder realizar un control a lazo cerrado de la velocidad. Es lo ideal para cualquier proyecto de robótica.

Los distintos ratios de cajas reductoras existen para no tener que realizar un control por PWM tan estricto a la hora de controlar la velocidad.

Nunca van a poder hacer que el motor tenga mas velocidad, a menos que se aumente el voltaje (sin que se queme). pero la velocidad mínima viene dada por el PWM.

Características

1.Doble Eje. Tamaño reducido 18.7mm x 22.3mm x 64.5mm
2.Baja Velocidad-Alto Torque.
2.Perfecto para diámetros pequeños, bajo ruido
3.Peso: 30Gr

Voltaje:		3V	5V	6V
Parámetros del motor (sin caja)	RPM	6000
Parámetros del motor (sin caja)	Corriente	80 - 100ma
Parámetros de caja reductora	Reduccion	48:1
	Velocidad sin carga	125RMP	200RPM	230RPM
	Velocidad con carga	95RPM	160RPM	175RPM
	Torque de salida	0.8kg.cm	1kg.cm	1.1kg.cm
	Corriente	110-130ma	120-140ma	130-150ma
	Diametro maximo de rueda	6.5cm
	Dimensiones	70x22x18 mm
	Peso	50g
	Ruido	<65dB

Anchura: 22mm
Profundidad: 18mm
Peso: 50g
Altura: 70mm
