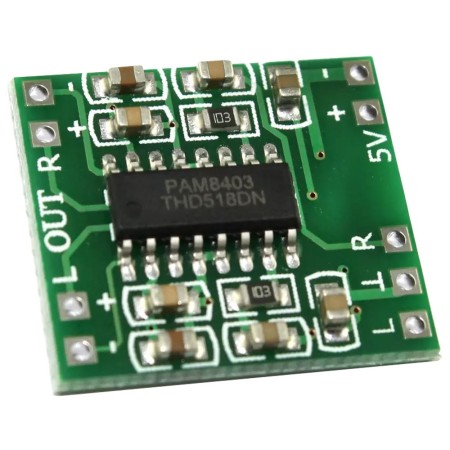

Modulo Amplificador De Audio Estereo Clase D Pam8403

Amplificador de audio digital clase D de 2 canales de 3W cada uno. Se alimenta con voltajes de 2.2 a 5V. Los altavoces deben ser de 4 y 8 Ohm.

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	33%	$ 5.972,84
30	35%	$ 19.004,48
50	37%	$ 33.484,08
100	39%	$ 70.588,05

$ 1.248,87 Impuestos no incluidos

1248.87 Impuestos no incluidos

$ 1.809,95 -31%

En stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

Al ser Clase D tiene un eficiencia del 90% a diferencia del los Clase A o B. Por esta razón el modulo se usa generalmente sin disipador. El modulo cuenta con protecciones de temperatura, corto circuito y cancelación de ruido.

Especificaciones

Amplificador de audio estéreo con PAM8403
Estéreo de dos canales, con solo 5v es capaz de generar dos canales de 3w+3w
Amplificado Clase D
Eficiencia 90%
Relación S/N 90dB
Protección contra cortocircuito y sobretemperatura
3W por canal (En 5V y 4 Ohm)
Para parlantes de 4 y 8 Ohm
Alimentación simple de 2.5 a 5V (Se puede alimentar desde el puerto USB)
Dimensiones: 20 x 18 mm

Distribución de pines:

OUT L: Salida de Parlante Izquierdo
OUT R: Salida de Parlante Derecho
L: Entrada de Audio Izquierdo
R: Entrada de Audio Derecho
T: Masa de Entrada de Audio
5V-: Masa
5V+: Alimentación 2.5V a 5V (NO MAS DE 5.5V)

Link Datasheet

Datasheet PAM8403

La compra incluye:

- 1 Modulo amplificador clase D PAM8403

Anchura: 1.9cm
Profundidad: 2.2cm
Alimentación: 2.5 - 5V
