Modulo Termometro Max6675 + Termocupla Tipo K
El MAX6675 realiza la compensación de unión fría y digitaliza la señal de una termocupla de tipo K. Los datos se envían en una resolución de 12 bits, compatible con SPI ™ solo lectura.
Dentro de este pequeño circuito se encuentra la electrónica necesaria para amplificar, compensar y convertir a digital el voltaje generado por la termocupla, lo que hace muy sencilla la tarea de conectarla a un micro-controlador.
En este modulo encontramos el MAX6675 con toda la electrónica necesaria y las terminales apropiadas para facilitar su uso.
El MAX6675 se conecta con un micro-controlador mediante una interfaz de 3 lineas compatible con el estándar SPI. Ademas tenemos un bit que nos indica si la termocupla esta abierta -desconectada o rota, por ejemplo- la cual podemos usar para tomar acciones correctivas o informativas en el software, como disparar una alarma o mostrar un aviso.
Aplicaciones
● Industrial
● Electrodomésticos
● HVAC
Características de la Termocupla:
- Termocupla Tipo K de tornillo.
- Permite medir directamente todo tipo de proceso de producción desde 0 ~ 800°C.
- Usado en líquido, vapor, gas o la superficie de un sólido.
- Rosca M6
- Longitud de cable: 50 cm.
- Rango de Temperatura: 0 – 800°C.
- Longitud del sensor: 25mm.
Características del ADC de MAX6675:
- Interfaz compatible con SPI sólo de lectura.
- Resolución: 12 bits.
- Medición hasta 1024 °C (con la termocupla adecuada).
- Frecuencia de reloj SPI máxima Fscl 4.3 Mhz.
- Tiempo de conversión: 0.17 s (máximo 0.22 segundos).
>Links
Datasheet Max6675.
Datasheet Termocupla k
Especificaciones técnicas
- Alimentación: 3.3 V a 5 V.
- Corriente de funcionamiento: 50 mA.
- Consumo máximo: 1.5 mA.
- Temperatura rango de medición: 0°C a 1024°C.
- Resolución de la temperatura: 0.25°C.
- Modo de salida: SPI señal digital.
- Temperatura de trabajo: -20°C a +85°C.
- Interfaz compatible con SPI solo de lectura.
- Resolución: 12 bits, 0.25°C.
- Medición hasta 1024°C.
- Frecuencia de reloj SPI máxima Fscl: 4.3 Mhz.
- Tiempo de conversión: 0.17 seg. máximo 0.22 seg.
- Incluye termopar tipo K de 0 a 600°C.
- Numero de pines: 5.
- Terminal de 2 tornillos (para conectar la termocupla).
- Con orificio para sujetar.
- Compatible con Arduino.
- Dimensiones: 38 mm X 16 mm.
LA COMPRA INCLUYE:

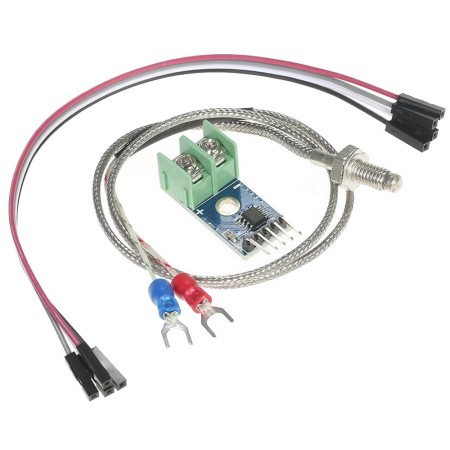

- 1 Modulo Termómetro Max6675.
- 1 Termocupla Tipo K.
- 1 Cable Dupont.
