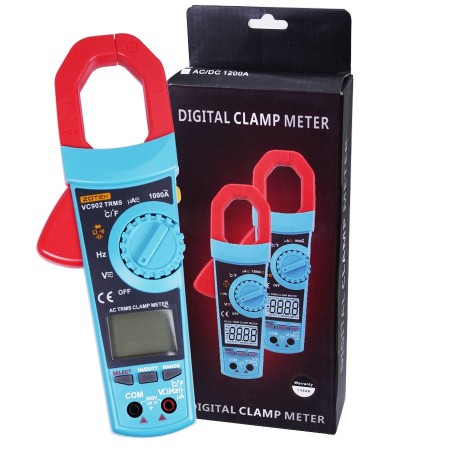

Pinza Amperometrica Digital Zotek VC902
Pinza amperometrica digital de alta capacidad, capaz de medir corrientes de hasta 1000 amperes. Esta pinza ademas posee deteccion automatica de rango, evitando asi errores por mala configuracion. La misma viene con su estuche para mantener todos los accesorios juntos y protegidos.
Caracteristicas
-
Deteccion de rango Automatica
-
Medición de RMS real
-
Protección de 550V en resistencia y capacitancia
-
Display LCD
-
Tasa de muestreo: 3 veces por segundo
-
Display retroiluminado
-
Identificación de polaridad
-
Indicación de baja tensión
-
Medición de corriente alta de hasta 1000A, medición de corriente baja
-
Apagado automático
-
Mediciones principales: Voltaje AC/DC, Corriente AC/DC, Resistencia, Capacitancia, Testeo de Diodo y Continuidad, Temperatura (Con la sonda TP01K), Frecuencia.
Especificaciones:
-
Frecuencia: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)
-
(1,5% + 15) <752 ° F ± (1,0% + 5), ≥752 ° F ± (1,5% + 15) Temperatura <400 ° C ± (1,0% + 5), ≥400 ° C ±
-
Capacitancia: 10nF(±5.0+20), 100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)
-
Voltaje DC: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
-
Voltaje AC: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)
-
Corriente DC: 600uA/6000uA(±0.8%+10)
-
Corriente AC: 600uA/6000uA(±0.8%+10), 60A/600A/1000A(±2%+30)
-
Resistencia: 600Ω(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60MΩ(±1.5%+3)
-
Alimentacion: 3V (1.5V Baterias AA x 2 unidades)
-
Dimensiones: 280 x 70 x 45mm
-
Peso: 510g
La compra incluye
- 1 Pinza Amperometrica Zotek VC902
- 2 Puntas de medición
- 1 Sonda de temperatura TP01K
- 1 Estuche
- Manual de usuario
(Baterias no incluidas)
- Anchura
- 7cm
- Profundidad
- 23.5cm
- Peso
- 318g
- Voltaje de operación
- 2 pilas AA
- Altura
- 4cm
