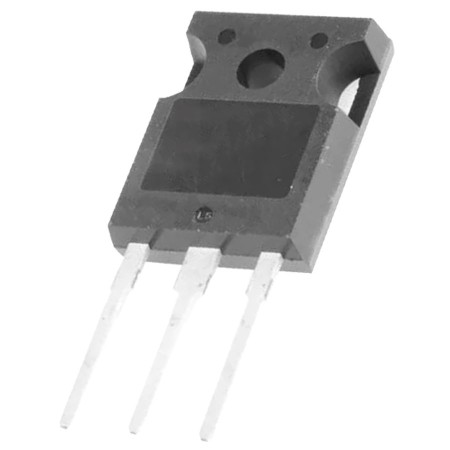

Transistor IGBT FGH60N60

Los transistores IGBT ofrecen tecnología de rendimiento óptimo para UPS, soldadores, y aplicaciones PFC, donde evitar pérdidas de conducción y conmutación son esenciales.

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	17%	$ 9.830,78
30	19%	$ 32.962,02
50	21%	$ 60.719,51
100	23%	$ 133.004,63

$ 4.915,39 Impuestos no incluidos

4915.39 Impuestos no incluidos

$ 5.782,81 -15%

En stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

Transistor IGBT FGH60N60

Especificaciones:

• Temperatura máxima de conexiones: TJ = 175oC
• Temperatura positiva coeficiente de fácil funcionamiento paralelo
• Alta capacidad de corriente
• Baja tensión de saturación: VCE (sat) = 1.9 V (Típico) @ IC = 60A
• Alta impedancia de entrada
• Conmutación rápida
• Parámetros de distribución
• Compatible con RoHS

Especificaciones técnicas:

Familia: de transistores Igbt-Single
Tipo IGBT: Diafragma de campo
Voltaje Colector-Emisor (Máx.): 600 V
Actual-Colector (Ic) (Máx.): 120A
Actual-Colector Pulsada (Icm): 180A
Vce (on) (Máx.) Vge, Ic: 2.5 V @ 15 V, 60A
Energía-Máxima: 600 W
Conmutación de la Energía: 1.26mJ (a), 450 y micro
Tipo de entrada: estándar
Bloque la Carga: 189nC
Td (on/off) @ 25 ° C: 18ns/104ns

Aplicaciones:

• En inversores Solares, UPS, SMPS, PFC
• Calentamiento por inducción

La compra incluye:

1 Transistor FGH60N60
