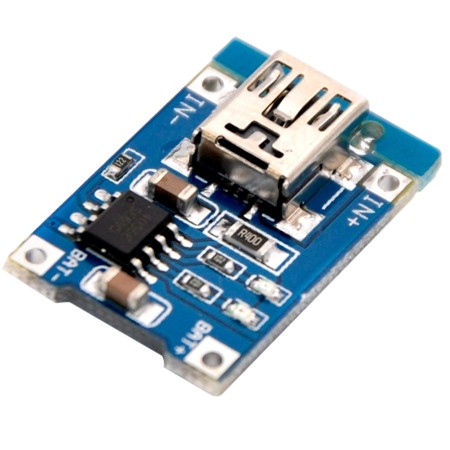

Modulo de carga de bateria de litio con entrada mini usb
Este modulo utiliza la conexión de mini USB 5V para cargar una batería de Litio/Lipo, con indicación LED, utiliza el IC TP4056.
Este módulo es una manera simple de cargar tus baterías LiPo/LiOn de una celda hasta el voltaje de 4.2V. Funciona con baterías que tienen 3.7V de carga nominal y 4.2V de carga completa, viene programado para cargar a 1A, esta corriente se puede modificar al cambiar la resistencia R3 según se muestra en el datasheet.
Especificaciones técnicas
- Corriente de carga ajustable hasta 1A
- Precisión de carga 1.5%
- Voltaje de entrada: 4.5V a 5.5V DC
- Voltaje de carga completa: 4.2V
- Chip: TP4056
- Led indicador Rojo cuando está cargando
- Led indicador Verde de carga completa
- Entrada tipo Micro-USB
- Temperatura de trabajo: -10º a 85ºC
- Atención: No tiene protección a polaridad inversa
Recomendaciones
- La corriente de carga sea aproximadamente el 37% de la capacidad de la batería y nunca mayor al 100%, por ejemplo si la batería es de 1000mAh, debe usar 400mA.
- El cable de conexión no debe ser muy largo
- Verificar que la conexión sea segura
- No tiene protección de polaridad inversa
TABLA Rprog:
|
RPROG (k) |
IBAT (mA) |
| 30 | 50 |
| 20 | 70 |
| 10 | 130 |
| 5 | 250 |
| 4 | 300 |
| 3 | 400 |
| 2 | 580 |
| 1.66 | 690 |
| 1.5 | 780 |
| 1.33 | 900 |
| 1.2 | 1000 |
La compra incluye
-
Modulo de carga de batería de litio con entrada mini usb
- Anchura
- 2cm
- Profundidad
- 3cm
- Voltaje de operación
- 4.5V a 5.5V DC
- Altura
- 0.5cm
