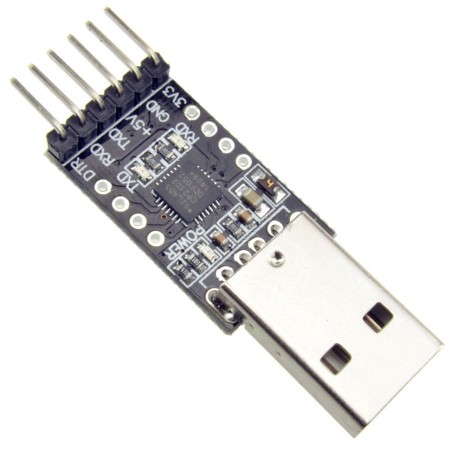

USB 2.0 a UART TTL 6 pines CP2102
Obtiene una interfaz UART TTL con solo conectarlo al puerto USB, soporta Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
Características Principales:
El conversor CP2102 permite que un microcontrolador y una PC se comuniquen utilizando el protocolo USB de forma sencilla, es compatible con cualquier microcontrolador como PIC, Atmel AVR, Arduino y ESP8266, funciona de forma similar a los conversores FTDI232 y PL2303HX, con la ventaja de tener un mejor precio y mayor soporte de drivers, además puede funcionar como "programador" del Arduino Mini Pro, pues incluye el pin DTR o RESET necesario para cargar fácilmente el sketch al Arduino Mini Pro.
Al utilizar el conversor USB se facilita la integración de nuestros proyectos con programas de PC como Matlab, Labview, Processing, a nivel del programa del microcontrolador el conversor es "transparente" pues el microcontrolador solo hace uso del clásico protocolo serial y nos olvidamos de la complejidad del protocolo USB.
Para utilizar esta placa como programador debe conectar el módulo al Arduino Pro Mini utilizando los pines: +5V, GND, TXD, RXI y DTR. El pin DTR funciona como RESET, de esa forma cada vez que cargamos un "sketch" a nuestro Arduino, el programa "Resetea" al Arduino utilizando el pin DTR del módulo.
También es usado para programar o "flashear" el chip ESP8266 en las versiones: ESP-01 y ESP-12E.
Especificaciones técnicas
- Especificación USB 2.0 de velocidad completa de 12 Mbps
- Conector USB: USB tipo A
- Pines salida (TTL): +3.3V, RST, TXD, RXD, GND y + 5V
- Transceiver USB integrado, no requiere de resistencias externas
- Cristal oscilador integrado
- Regulador de voltaje de 3.3V interno
- Buffer de recepción de 576 Bytes
- Buffer de transmisión de 640 Bytes
- Temperatura de trabajo: -40° a 80°C
- Sistemas Operativos soportados: Windows 10, 8, Vista, 7, XP, 2000, 98SE y Linux 2.40(en adelante)
- Dimensiones: 21 mm x 16 mm
Conexión programador
RXI-----------TXO
TXD----------RXI
GND---------GND
+5V----------VCC
