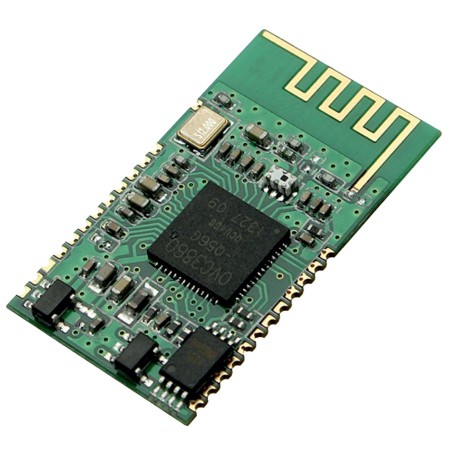

Modulo Receptor de audio bluetooth XS3868
Añade conectividad bluetooth a tus dispositivos con este modulo, podrás encontrar fácilmente ejemplos de uso para auriculares y parlantes.
Recibir audio de forma inalámbrica ya no será un problema con la ayuda de este magnífico modulo. Construye tus parlantes bluetooth o agrega bluetooth a un viejo equipo de sonido, el módulo soporta los perfiles bluetooth A2DP y AVRCP, de audio de alta calidad y control remoto respectivamente, el módulo permite manejar mediante un puerto serial 6 comandos: play, anterior, siguiente y más.
Especificaciones técnicas
- Chip: OVC3860
- Bluetooth: Versión 2.0
- Frecuencia: 2.402-2.48 GHz
- Voltaje de operación: 3.0V – 3.6V DC
- Voltaje UART: 3.3V
- Máxima potencia de recepcion: Clase 2 dbm (en la almohadilla de la antena)
- Sensibilidad de recepción: mejore que-82dbm
- Rango: aprox. 10 metros
- Velocidad de datos de hasta 3 Mbps (over the air)
- UART velocidad de Transferencia de DATOS: 9600 bps
- UART: no soporta el control de flujo
- Micrófono: entrada mono
- Perfiles Bluetooth: A2DP y AVRCP
- Antena externa: Conexión a través de pad SMD
- Dimensiones: 30x17x3.4mm
- 6 funciones controlables: encendido, play, siguiente, anterior, subir volumen, bajar volumen
- 2 indicadores de luz para mostrar diferentes condiciones de trabajo
Documentación
Aplicaciones
- auriculares bluetooth
- parlante bluetooth
- estero automóvil
- bluetooth mini estero soundboxes.
La compra incluye
- Modulo bluetooth OVc3860 XS3868
- dimensión del empaque: 7mm x 7mm x 0.9mm
- Anchura
- 1.5 cm
- Peso
- 3 gramos
- Altura
- 3.7 cm
