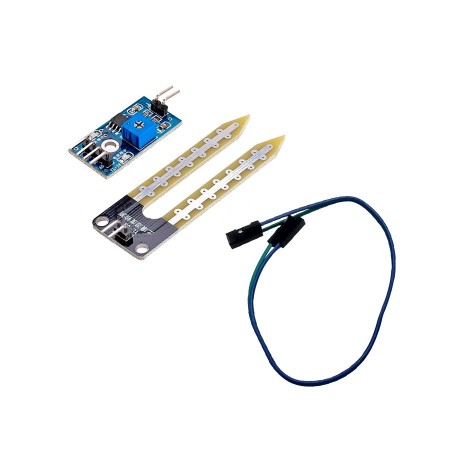

Modulo Sensor De Humedad De Suelo
El sensor de humedad en Suelo HL-69 utiliza la conductividad del agua para informarnos la presencia del liquido en un sustrato como la tierra común que se encuentra en macetas, terrarios y en cualquier jardín.
Este sensor utiliza 2 electrodos que pasan corriente a través del suelo, la resistencia entre los electrodos dependerá de la humedad del suelo, por lo que para un suelo muy húmedo tendremos una resistencia muy baja (corto circuito) y para un suelo muy seco la resistencia será muy alta (circuito abierto).
El electrodo va conectado a una tarjeta de acondicionamiento (YL-38) en la cual un OpAmp en modo comparador nos entrega una salida digital y otra analógica, la salida digital se activa cuando el nivel de humedad es menor al deseado, este nivel se puede regular con el potenciómetro de la tarjeta, la salida analógica nos entrega un voltaje desde 0V para un suelo muy húmedo hasta 5V para un suelo muy seco.
Este sensor es ideal para monitorear el nivel de humedad de tus plantas y así recordar cuando necesitan ser regadas o incluso para realizar un sistema totalmente automatizado de riego. Si el sistema se conecta a internet podríamos controlar/monitorear nuestro jardín desde cualquier lugar del mundo!
Especificaciones técnicas
- Voltaje de Alimentación: 3.3V - 5V
- Voltaje de la señal de salida: 0~5V (Analógico)
- Salida digital de comparador
- Corriente: 35mA
- Tamaño: 60x20x5mm
- Superficie de electrodo: Estaño
Documentos
/* # Codigo de ejemplo para el sensor de humedad de suelo # Autor : Dast # Fecha : 10.08.2015 # Version : 1.0 # Conectar la salida analogica del sensor al pin A0(Analog 0) # rango de valores # 0 ~300 muy humedo # 300~700 intermedio # 700~1023 muy seco*/ void setup(){ Serial.begin(9600);} void loop(){ Serial.print("Nivel de humedad:"); Serial.println(analogRead(A0)); delay(500);}
La compra incluye
- 1 Módulo de Procesamiento de Señal
- 1 Sensor de Cobre Estañado Esquemático YL-38
- 5 Cables De Conexión
- Empacado en bolsa antiestática
