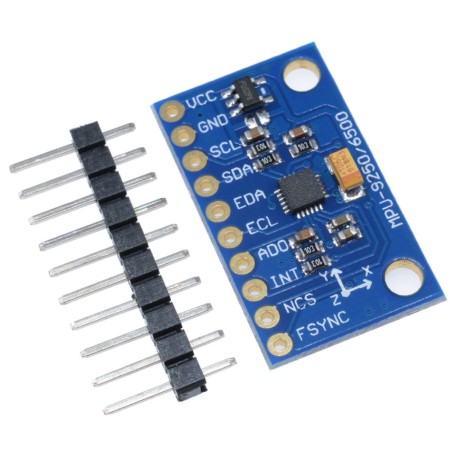

Acelerómetro Magnetómetro Giróscopo 9 Ejes
El MPU-9250 se conoce como el módulo 9DOF (Grados de libertad) al combinar tres mediciones en tres ejes(X/Y/Z). Este módulo se usa a menudo en la construcción de maquetas de aviones, cuadricópteros, o simplemente donde queremos saber información sobre el movimiento de un objeto en el espacio.
Puede usar en proyectos de R/C donde se requiere orientación y datos direccionales, entre otros muchas aplicaciones.
El MPU-9250 es un dispositivo de seguimiento de movimiento de 9 ejes que combina un giroscopio de 3 ejes, un acelerómetro de 3 ejes, un magnetómetro de 3 ejes junto con un procesador de movimiento digital (DMP), todo en una sola pieza de 3x3x1mm.
Este pequeño modulo permite a los fabricantes eliminar la integración costosa y compleja de dispositivos poco discretos, lo que garantiza un movimiento óptimo Rendimiento para los consumidores.
El MPU-9250 también está diseñado para interactuar con múltiples sensores digitales no inerciales, como sensores de presión, en su puerto auxiliar I2C.
Es posible comunicarse con el módulo a través de la interfaz I2C o SPI. Gracias al estabilizador del módulo, se pueden utilizar 3,3 V y 5 V para su suministro. El consumo de corriente seria máximo es de 3,7 mA a plena carga.
Pines
- VCC: entrada de energía
- GND: tierra
- SCL: Reloj I2C
- SDA: Datos I2C
- EDA: datos externos de I2C
- ECL: reloj externo I2C
- ADO: pin de configuración de la dirección del esclavo I2C (High establece la dirección I2C del MPU-9250 en 0x69)
- INT: pin de interrupción
- NCS: Selección de chip (deshabilitado si se mantiene bajo)
- FSYNC: utilizado para la estabilización de imagen digital (generalmente no utilizado)
Especificaciones
- Voltaje de operación: 3 a 5v
- Conversión de nivel lógico incorporada (Nota: ¡SOLO en líneas I2C!)
- Resolución: convertidor AD de 16 bits
- Rango de aceleración: ± 2 ± 4 ± 8 ± 16 g
- Rango de giroscopios: ± 250, 500, 1000, 2000 ° / s
- Rango de campo magnético: ± 4800uT
- La dirección MPU-9255 I2C es 0x68 (predeterminada) o 0x69
- Dirección MPU-9255: 0x73
LA COMPRA INCLUYE
- 1 Acelerometro y Giroscopo MPU9250
- Peso
- 5g
- Chipset
- MPU6050
