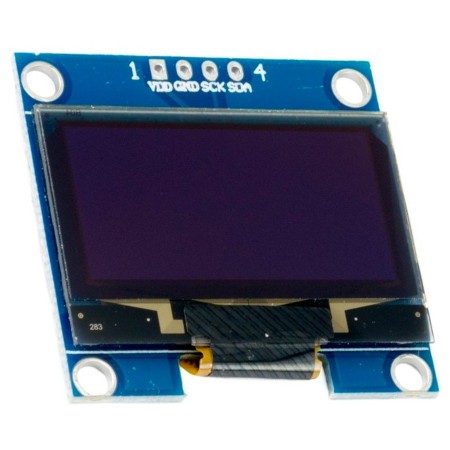

Display oled I2C 1.3 pulgadas
Display Oled SH1106 I2C de 128×64 1.3″es una mini pantalla que permite mostrar tanto texto como gráficos. Además por ser de tipo OLED no necesita de retroiluminación (Backlight) como los LCD, lo que hace que su consumo de energía sea mucho menor y aumenta su contraste.
Esta pantalla OLED de 1.3” es de color blanco (pixeles de color blanco) y permite conexión vía I2C a microcontroladores, Arduino, etc.
Este display está diseñado para trabajar con lógica de 3.3V, por lo tanto no se puede conectar de forma directa con las placas Arduino de 5Volts. Se tendría que usar un conversor de niveles TTL.
La alimentación del módulo soporta 3.3 a 5V, pero el puerto de comunicaciones debe trabajar a 3.3V.
Pines
- GND: Tierra
- VCC: Fuente de alimentación de 3,3 V o 5 V
- SCK: CLK Reloj
- SDA: I2C data
Especificaciones
- Tipo: Display Oled
- Resolución: 128×64 píxeles – 1.3 Pulgadas
- Monocromo: Píxeles Blancos
- Driver: SH1106
- Interfaz: I2C (dirección I2C: 0x3C)
- Pines: 4 (VDD, GND, SCK y SDA)
- Dimensiones: 35mm x 33mm x 3mm
- Voltaje de Operación: 3V – 5.5V DC
- Ángulo de visión: >160º
- Ultra bajo consumo de energía: 0.04W Cuando están encendidos todos los píxeles
- Temperatura de trabajo: -30ºC ~ 70ºC
La compra incluye
- Display oled I2C 1.3 pulgadas
