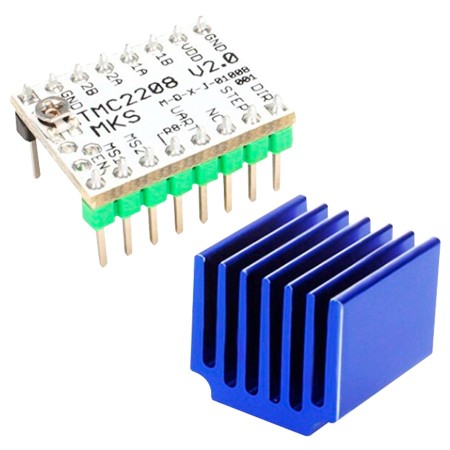

Driver motor paso a paso TMC2208 V2.0
TMC2208 es un driver de motor paso a paso de dos fases ultra silencioso, corriente de accionamiento continuo 1.4A, corriente de pico 2A, rango de voltaje 4.75V-36V, 256 subdivisión.
La unidad de interpolación flexible microPlyer proporciona hasta 256 subdivisiones, lo que permite un control sinusoidal perfecto incluso en sistemas con frecuencias de pulso limitadas; estos también están diseñados porque la tecnología ultra silenciosa stealthChop2 se usa amplia-mente en la impresión 3D.
Compatible con la electrónica de impresora 3D existente, eliminando los altos costos del rediseño. Con una interfaz estándar de paso / directorio, es fácil de usar. Puede reemplazar el TMC2100 original, menor calor, especialmente para el mercado de impresión 3D.
Descripcion de pines
Fuente de alimentación.
- GND = Tierra.
- VM = Voltaje de alimentación del motor.
- VIO = Voltaje de suministro lógico
Salidas del motor.
- M1A = Bobina de motor 1.
- M1B = Bobina de motor 1.
- M2A = Bobina de motor 1.
- M2B = Bobina de motor 1.
Entradas de control.
- STEP = Pasos.
- DIR = Entrada de la señal de dirección.
TMC2208.
- EN = Habilitar salidas del motor. GND == Encendido, VIO == Apagado.
- MS1 = Configuración de pasos.
- MS2 = Configuración de pasos.
- PDN = Control UART.
- CLK = Entrada del reloj.
- DIAG = Diagnostico.
- INDEX = Salida del índice.
- VREF = Voltaje de referencia analógico.
Especificaciones
- Corriente por defecto: 1.25a
- Corriente máxima: 2.0a
- Tensión lógica: 3,3 v/5v
- Voltaje de entrada: 4,75 v-36v
- Microstep: hasta 1/256
- Modo: dir/step,uart
La compra incluye:
- 1 Modulo controlador TMC228V2.0
- 1 Disipador de calor
- Anchura
- 16mm
- Tensión de alimentación recomendada
- 3.5 -5v
- Voltaje de operación
- 1 A
- Altura
- 20mm
