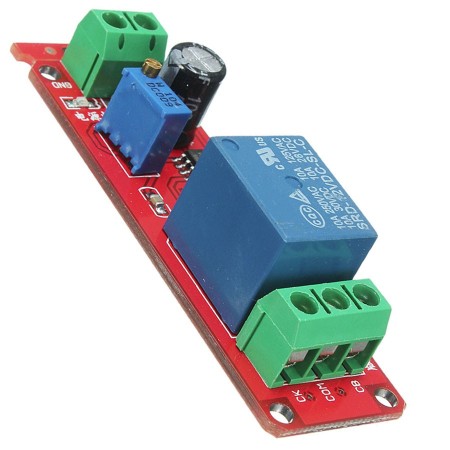

Modulo NE555 Timer Temporizador Relay Dc 12v Delay - 0 A 10 Segundos
- Diseño de circuito sencillo
- Generación / sincronización de impulsos de precisión
- Ciclo de trabajo ajustable
- Incluye el LED indicador de encendido y LED indicador de activación del relé
- Ajustable de 0 a 10 segundos por defecto, puede cambiar el preset o capacitor para obtener más tiempo
Especificaciones:
- Especificaciones:
- Módulo basado en: Integrado NE555.
- Módulo de conexión de retardo: Module Delay
- Voltaje de Entrada: DC12V
- Control de Voltaje: AC 0 ~ 250V/MAX. 10A, DC 0 ~ 30V/MAX. 10A
- El voltaje de Funcionamiento: DC 12V
- Max. Carga: 2200W
- Tamaño del producto: aprox. 6.8 x 2.2 x 1.8 cm
- Peso Neto: aprox. 34g
Modo de Uso:
Para el buen uso del modulo se tiene que ingresar con 12v en las dos borneras de alimentación VCC (+) y GND (-) al alimentarlo se encenderá un LED indicador de encendido y en las 3 borneras de salida que estarán conectadas al RELE que se encontrara cerrado entre el Común (COM) y el Normal Cerrado (NC) a lo largo de unos segundos va a cambiar de modo estando cerrado entre el Común (COM) y el Normal Abierto (NO) y permanecerá así hasta que se desconecte de la corriente.
se puede hacer el seteo del tiempo en el que cambia de modo gracias el PRESET regulable regulando entre 0 a 10 segundos
La Compra Incluye:
- Modulo de Retardo NE555 12v con Salida de Rele
