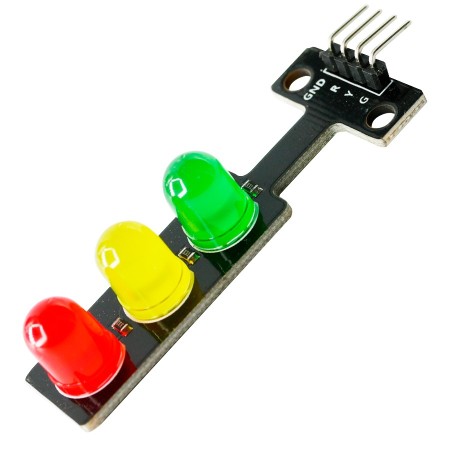

Modulo semaforo 3 leds Rojo amarillo Verde
Modulo tipo Semáforo LED permite crear proyectos de electrónica para la representación de un semáforo mini, es muy versátil y de fácil conexión, cuenta con tres leds difusos de 10mm, los colores de los leds son verde, amarillo y rojo.
Sirve para simular distintos proyecto como el parpadeo de un semáforo, demostración de enseñanza, señales de indicación, sistemas de alarmas, indicadores de estado, etc.
El módulo tiene 3 leds los cuales los puedes programar de manera independiente o sincronizarlos para encenderlos por un determinado tiempo.
Este módulo es totalmente compatible con las placas de desarrollo de Arduino y otros microcontroladores de 5V o con sistema de raspberry pi.
¿Cómo funciona?
El modulo tiene marcado los pines que corresponden a cada color y de acuerdo al microcontrolador o placa de desarrollo que vas utilizar, conectar en los pines digitales y después selecciona un entorno de programación te recomendamos el IDE de Arduino ya que este te permitirá programarlo de manera rápida y sencilla.
Conexión de terminales:
- GND: Común
- R: led rojo
- Y: led amarillo
- G: led verde
Especificaciones
- Colores de los LED: Rojo, Amarillo y Verde
- Nivel activo: Alto Nivel
- Voltaje de funcionamiento: 3.3V o 5V
- Corriente Led Rojo: 13mA en 5V
- Corriente Led Amarillo: 13mA en 5V
- Corriente Led Verde: 25mA en 5V
- Aptos para conectar al pin PWM para controlar el brillo.
- Medidas 56mm x 21mm x 11mm.
- 2 Orificios de fijación de 3mm
- Brillo: Brillo Normal
- Interfaz: Cátodo Común, Rojo, Amarillo, Verde
LA COMPRA INCLUYE
- 1 Modulo semaforo 3 leds
- Peso
- 5g
- Chipset
- MPU6050
